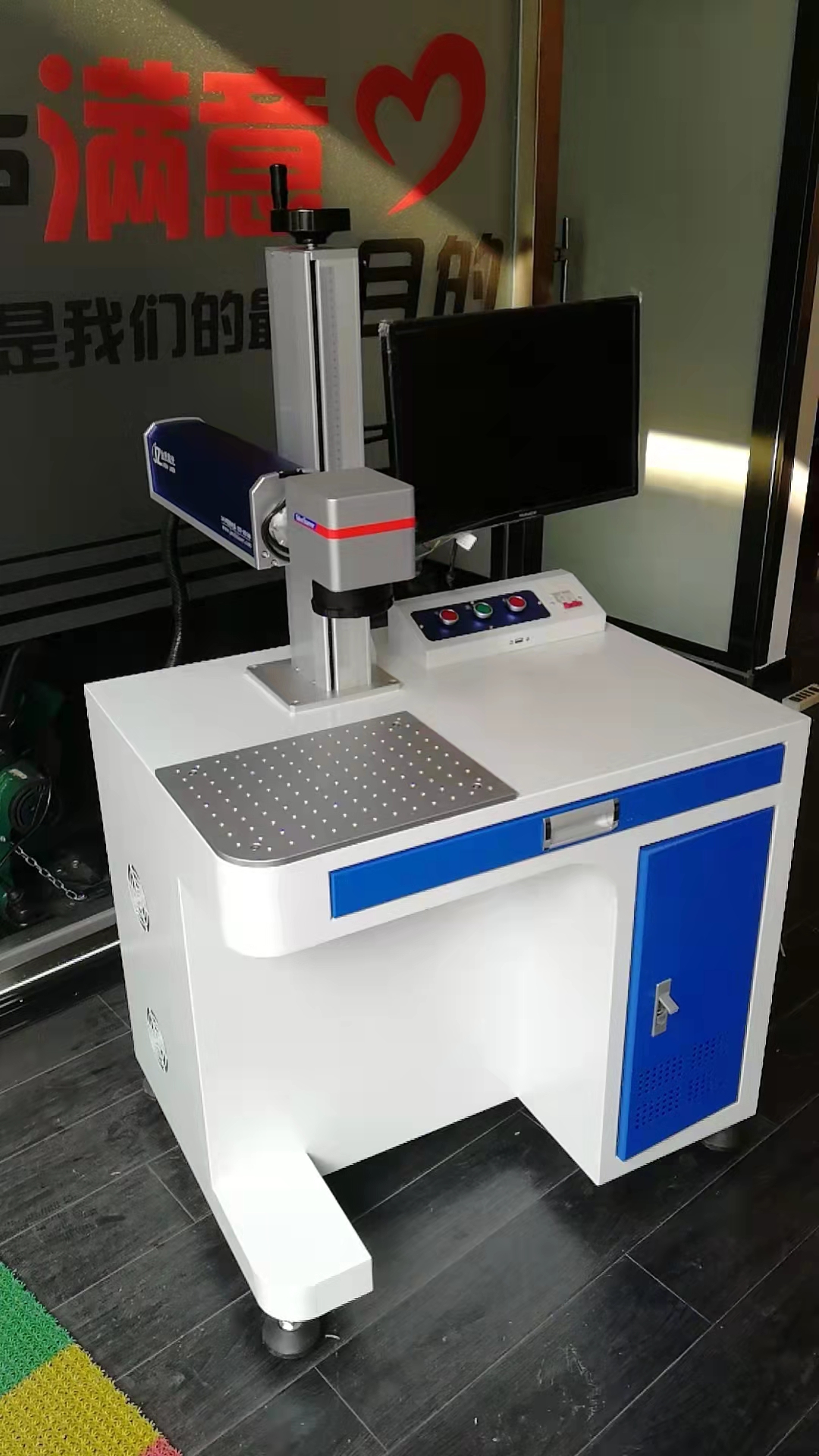

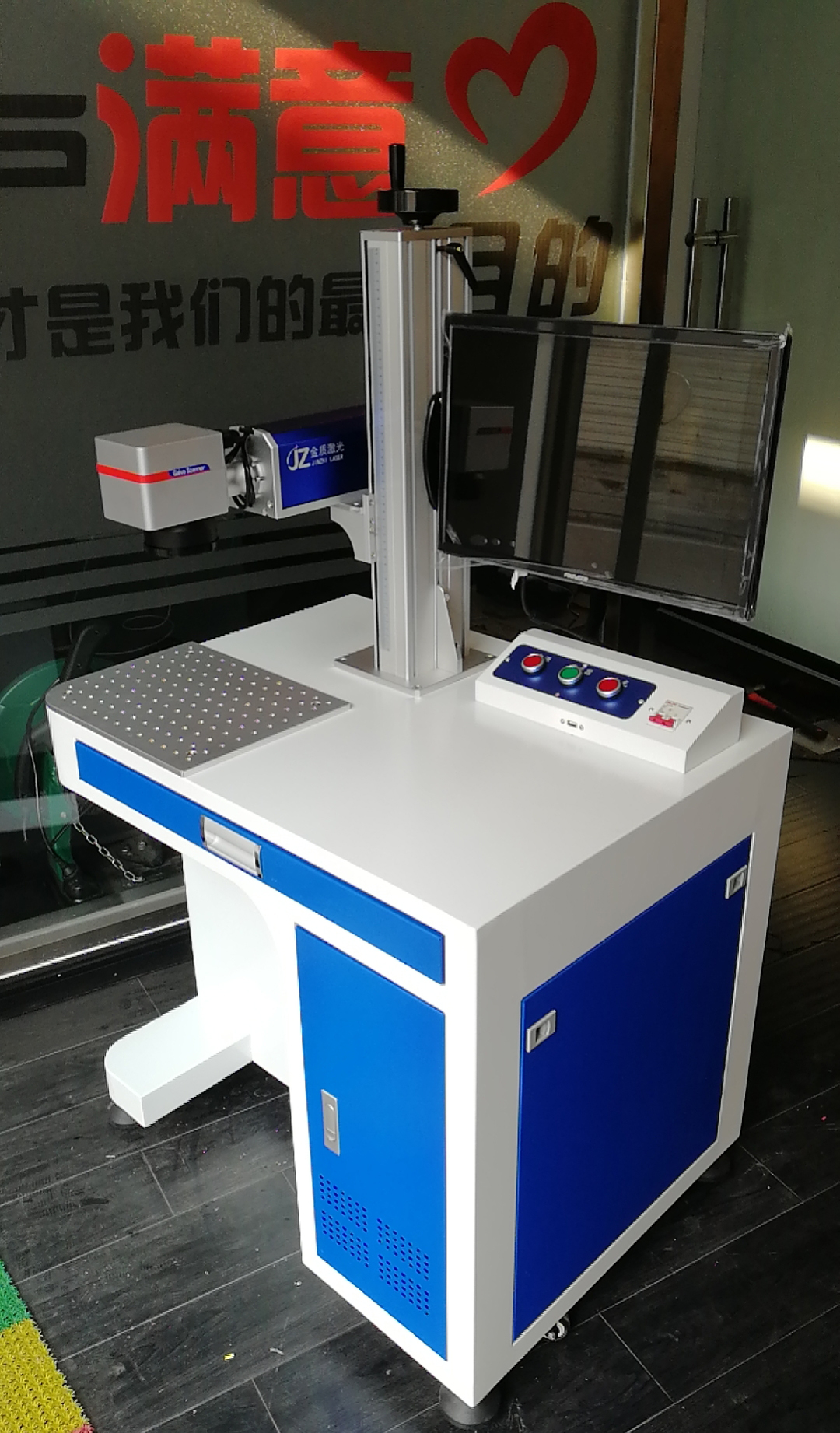

Desktop fiber laser marking machine

jinzhilaser

Main Features

1. High speed scanner (import or china brand optional).
2. No maintenance laser source: service time 100,000 hours.
3. Higher precision, f aster speed.
4. Small size, low power consumption.
5. Red light preview: show the marking position before laser.
6. Notebook with Powerful software.
7. User friendly interface, easy operation.

8. OEM supplied.

Product Application

It's widely used to metal products, tools parts, accessories, electronic components, IC, electrical appliances, communications equipment, precision instruments, jewelry, auto parts, instruments, plastic buttons, medical equipment, bearing parts, watches, glasses such as graphics and text markup in many areas, as well as mass production pipeline operations.

Technical Parameter

Model	JZ-GX20	JZ-GX30	JZ-GX50
Laser Power	20W	30W	50W
Wave length of laser	1064nm
Laser repetition frequency	20kHz~100kHz
Marking scope	100*100mm（ customized）
Laser sources	Fiber module
Laser Head	Scanning head
The minimum focus facula   diameter	20μm
Minimal character	0.01mm
Marking speed	≤7000mm/s
Repeated accuracy	0.0025mm
Cooling ways	Force-air Cooling
Power supply	220V/ 50Hz/2kVA（customized）
Process Material	All kinds of metal and part of Non-metal Materials
Support format	PLT, BMP, DXF, JPG, TIF, AI etc.

Packaging & Delivery

Packaging Details	Standard export package with wooden case
Delivery Details	5-7 working days
