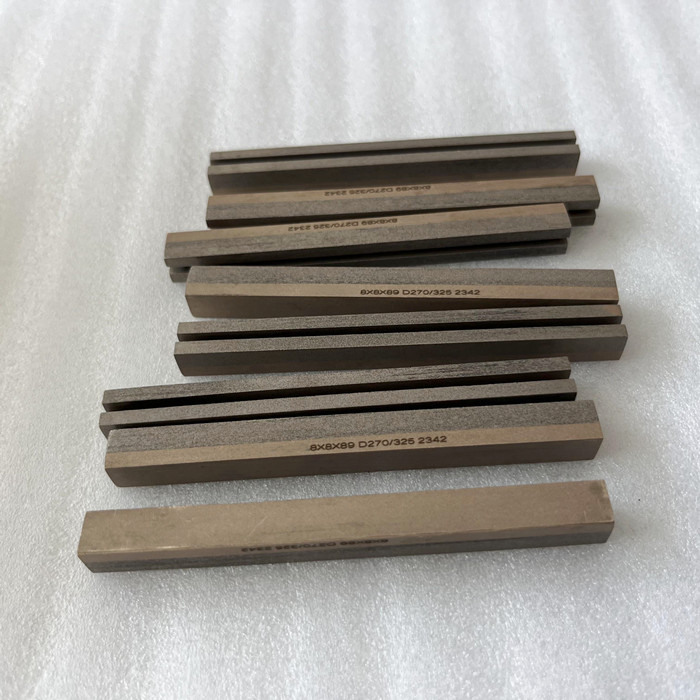

Diamond & CBN Honing Stone for Automobile Vessel Engine Cylinder

Angela

Diamond & CBN Honing Stone for Automobile Vessel Engine Cylinder

1. For horizontal and vertical type engine cylinders of various sizes.
2. Customzied honing stone type and size to make
3. High performance super abrasive material of synthetic diamond and CBN powder to make the honing stone to guarantee the peroformance
4. Critical size and shape precision of diamond and CBN honing stone to deliver the surface roughness required by customer
5. No high limit of MOQ for the diamond and CBN honing stone

K Series Honing Stones
Honing Unit	K3	K4	K5	K6	K8	K10	K12	K16	K20	AK20	AK30
Stone Length	15	15	18	19	32	32	45	57	63	63	63
Bore diameter	2.5-3	3-4	4-5	5-6	6-8	8-9.5	9.5-13	13-16	16-19	19-32	32-40

B Series Honing Stones
Honing Unit	B8	B10	B12	B14	B16	B20	AB20	AB30
Stone Length	47	47	60	70	85	95	95	95
Bore diameter	6-8	8-9.5	9.5-13	9.5-13	13-16	16-19	19-32	32-40

L Series Honing Stones
Honing Unit	L3	L4	L5	L6	L8	L10	L12	L16	L20
Stone Length	25	25	32	35	57	57	88	114	114
Bore diameter	1.9-3	3-4	4-5	5-6	6-8	8-9.5	9.5-13	13-16	16-32

General Size
Grit	50/60	60/70	70/80	80/100	100/120	120/140	140/170	170/200
FEPA	B301 or D301	B251 or D251	B213 or D213	B181 or D181	B151 or D151	B126 or D126	B107 or D107	B91 or D91
Grit	200/230	230/270	270/325	325/400	W40	W28	W20	W14
FEPA	B76 or D76	B64 or D64	B54 or D54	B46 or D46	M63	M40	M25	M16
